Blog Sheet Week 6


Operational Amplifiers
1. You will use the OPAMP in “open-loop” configuration in this part, where input signals will be applied directly to the pins 2 and 3.
a. Apply 0 V to the inverting input. Sweep the non-inverting input (Vin) from -5 V to 5 V with 1 V steps. Take more steps around 0 V (both positive and negative). Create a table for Vin and Vout. Plot the data (Vout vs Vin). Discuss your results. What would be the ideal plot?

When we applied the lowest possible voltage (Vin) we still achieved the maximum Vout. This was due to the fact that we connected the OPAMP in open loop configuration. The ideal Plot would look very much like a digital signal with -3.79 Vout with any negative Vin, and 3.79 Out with any positive Vin.


Table 1.1 Open loop OPAMP configuration input and output voltages non-inverting


Graph 1.1 Open loop OPAMP configuration input and output voltages non-inverting

b. Apply 0 V to the non-inverting input. Sweep the inverting input (Vin) from -5 V to 5 V with 1 V steps. Take more steps around 0 V (both positive and negative). Create a table for Vin and Vout. Plot the data (Vout vs Vin). Discuss your results. What would be the ideal plot?



Table 1.2 Open loop configuration OPAMP input and output voltage inverting

Graph 1.2 Open loop configuration OPAMP input and output voltage inverting

2. Create a non-inverting amplifier. (R2 = 2 kΩ, R1 = 1 kΩ). Sweep Vin from -5 V to 5 V with 1 V steps. Create a table for Vin and Vout. Plot the measured and calculated data together.



Table 2.1 OPAMP gain of 3, input and output voltage non-inverting




Graph 2.1 OPAMP gain of 3, input and output voltage non-inverting

3. Create an inverting amplifier. (Rf = 2 kΩ, Rin = 1 kΩ). Sweep Vin from -5 V to 5 V with 1 V steps. Create a table for Vin and Vout. Plot the measured and calculated data together.



Table 3.1 OPAMP gain of 3, input and output voltage inverting


Graph 3.1 OPAMP gain of 3, input and output voltage inverting

4. Explain how an OPAMP works. How come is the gain of the OPAMP in the open loop configuration too high but inverting/non-inverting amplifier configurations provide such a small gain?

The OPAMP takes a set voltage (say 5 volts) and also takes a variable input voltage (-5 to +5 volts) and outputs a voltage equal to the gain multiplied by the variable input voltage; also if set up as inverting amp, it can output a voltage with the opposite sign. So input of +5V would give output of -5V. The theoretical maximum amplitude is the set voltage (5 volts). But realistically is a little lower than the set voltage. In open loop configuration the gain is theoretically infinite, but really it is still very high around (10^5). In inverting/non-inverting configurations the gain is reduced with the use of resistors to reduce the voltage being fed back into the input.






schematic view is the bottom view!

1. Connect your DC power supply to pin 2 and ground pin 5. Set your power supply to 0V. Switch your multimeter to measure the resistance mode; use your multimeter to measure the resistance between pin 4 and pin 1. Do the same measurement between pin 3 and pin 1. Explain your findings (EXPLAIN).

The resistance between pin 1 and 3 with 0 Volts at pin 2 resulted in almost no resistance (about .6 ohms). When connecting the multimeter to pin 4 and 1 with 0 volts at pin 2, we measured an "overlimit" reading, which means it was open and there was no connection. So the resting position of the relay is pin 1 and 3 are connecting and when the relay is switched pin 1 and 4 are connected.

2. Now sweep your DC power supply from 0V to 8V and back to 0V. What do you observe at the multimeter (resistance measurements similar to #1)? Did you hear a clicking sound? How many times? What is the “threshold voltage values” that cause the “switching?” (EXPLAIN with a VIDEO).



Video 2.1 Showing the operation of the relay with varying voltages

We noticed there were two audible clicks from the relay, 1st one was around 3V and the second usually occured around 6- 6.5 volts.


3. How does the relay work? Apply a separate DC voltage of 5 V to pin 1. Check the voltage value of pin 3 and pin 4 (each with respect to ground) while switching the relay (EXPLAIN with a VIDEO).



Video 3.1 Shows the relay output change the switching the relay

We noticed that the output of volts at pin 1 changed when the relay was "switched".


LED + Relay


1. Connect positive end of the LED diode to the pin 3 of the relay and negative end to a 100 ohm resistor. Ground the other end of the resistor. Negative end of the diode will be the shorter wire.

2. Apply 3 V to pin 1

3. Turn LED on/off by switching the relay. Explain your results in the video. Draw the circuit schematic (VIDEO)


Video 3.1 Relay controlled LED switching on and off



Operational Amplifier (data sheet under Bb/week 6)

1. Connect the power supplies to the op-amp (+10V and 0V). Show the operation of LM 124 operational amplifier in DC mode with a non-inverting amplifier configuration. Choose any opamp in the IC. Method: Use several R1 and R2 configurations and change your input voltage (voltages between 0 and 10V) and record your output voltage. (EXPLAIN with a TABLE)

We were able to change the gain on the OPAMP by changing the resistance value ratio of R2 to R1. In the first table we achieved a gain of 3 ( 2000/1000 + 1 = 3 ), and the second table a gain of 5 ( 2000/470 + 1 = about 5 ).



Table 1.1 OPAMP non-inverting Vin and Vout values gain of 3

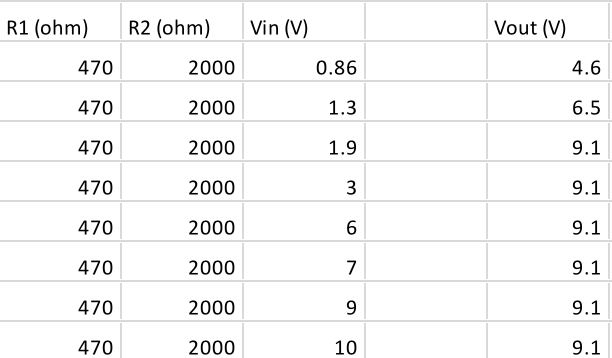

Table 1.2 OPAMP non-inverting Vin and Vout values gain of 5

2. Use your temperature sensor as your input. Do you think you can generate enough voltage to trigger the relay? (EXPLAIN)

We assume we would be able to generate enough voltage to trigger the relay with a heat source (hair dryer). Our hypothesis was that increasing temperature of the temp sensor would decrease the resistance of the sensor allowing enough voltage to flow to the relay.

3. Design a system where LED light turns on when you heat up the temperature sensor. (CIRCUIT schematic and explanation in a VIDEO)

We were not able to show the operation of the temperature sensor, but we hypothesize that the temperature sensor varies in resistance with a change in temperature. This would affect the Vin and Vout of the OPAMP which would energize or turn the relay off, turning the led on and off.

4. BONUS! Show the operation of the entire circuit. (VIDEO)
